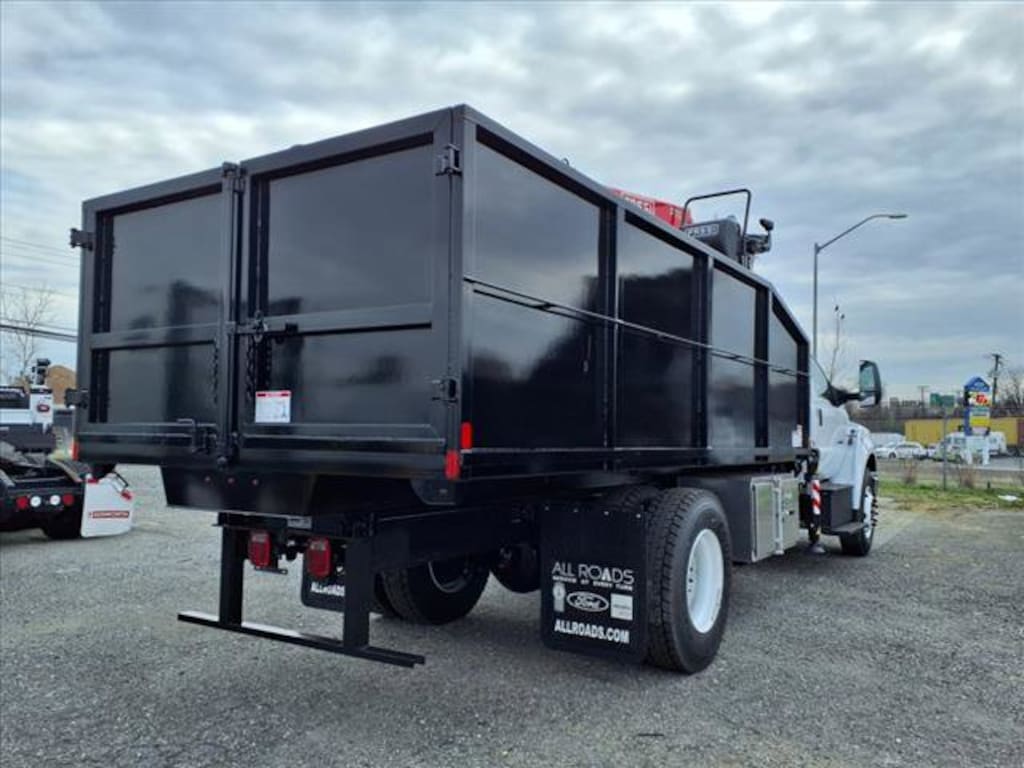

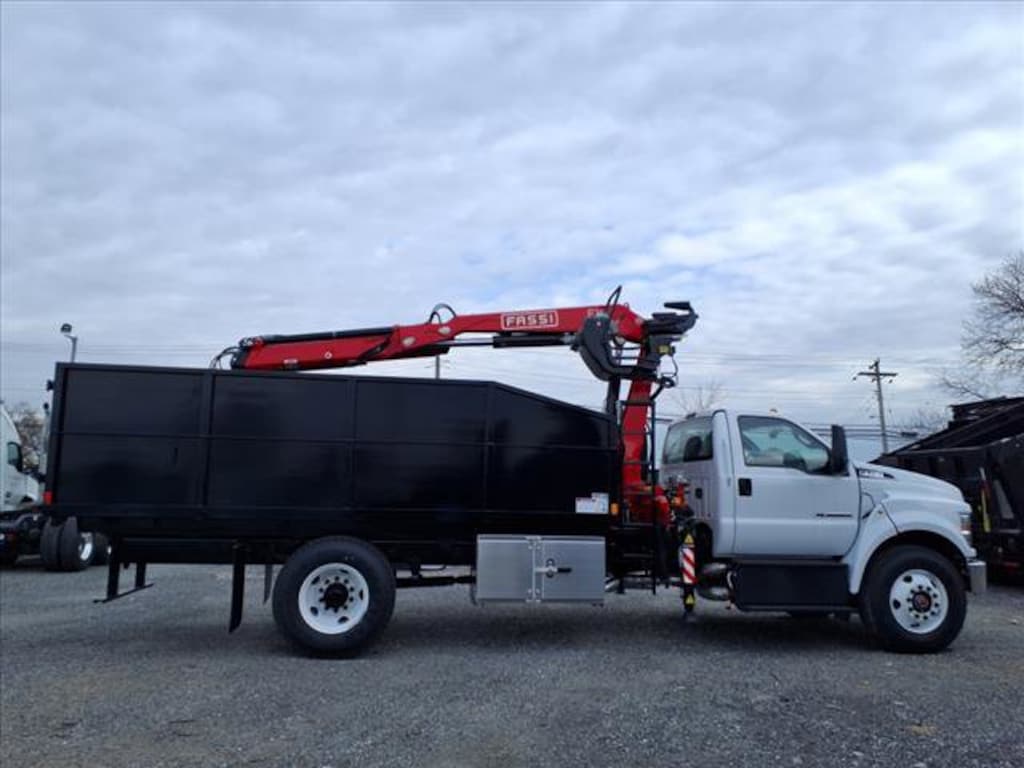

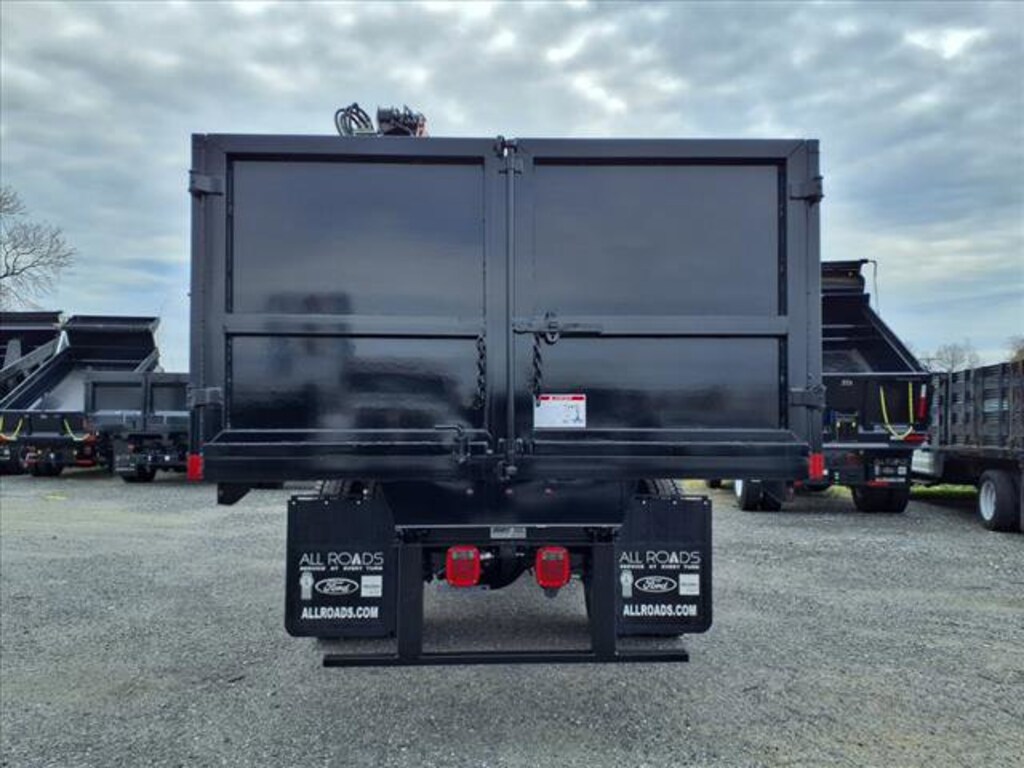

2025 F750 FASSI Model F115A.0.22 with Heiden HC60-A-6 Bypass Grapple 16FT Lenth 48'' Sides 390 Degrees up to 26'7'' Reach Capacity 5500 lbs 5 T Continuous
New 2025 FordF-750 Diesel Base Truck Standard Cab V-8 cyl
- Exterior Color
- Oxford White
- Interior Color
- Gray
- Body/Seating
- Truck Standard Cab/2 seats
- Transmission
- Automatic
- Drivetrain
- Rear-Wheel Drive
- Engine
- V-8 cyl
- VIN
- 1FDWF7DE3SDF07862
- Stock Number
- FN07862
Highlighted Features
- Wireless phone connectivity
- Exterior parking camera rear
- Speed sensitive wipers
- Remote keyless entry
- Steering wheel mounted audio controls
- Fully automatic headlights
- Dual rear wheels
- Heated door mirrors
Included Packages & Accessories
- 6.7L Power Stroke V8 turbo diesel - 300 HP @ 2500 RPM
- tires, front two 11R22.5G Goodyear Fuel Max RSA
- 5.57 axle ratio
- tires, rear four 11R22.5G Goodyear Fuel Max RTD
- front stabilizer bar
- trailer air brake package
- trailer connection socket - 7-way, wired for turn signals combined with stop
- voltmeter
- back-up alarm - electric, 102 dBA
- electronic stability control delete
- special rating GVWR - limited to 25,999 lb. GVWR
- pre-delivery inspection
- 4 speaker option for 588 radio
- ship-thru - manning
- engine block heater, Phillips, 120 volt/750 watt
- 12,000 lb. cap. non-driving - Dana E-1202I - I-Beam type
- single channel - straight 'C' 14.18 sm, 120,000 PSI
- mirrors, dual - heated and motorized rectangular, XL2020 - 96" width
- jump start stud - remote mounted
- 110 A/C outlet - in lower center finish panel
- black single trumpet air horn
- body builder wiring - at end of frame, combined -
- lube, front axle, EmGard 50W, synthetic oil
- lube, rear axle, EmGard 75W-90, synthetic oil
- taper-leaf springs, parabolic - 13,200 lb. cap
- rear view camera with mirror display
- battery - two 900 CCA, 1800 total, includes steel battery box
- preferred equipment package 600A
- bumper, front - black, full width
- wheel seals, front - oil lubricated, SKF ScotSeal PlusXL seals
- wheel seals, rear - oil lubricated, SKF ScotSeal PlusXL seals
- manual Regen initiation - driver interface in message center
- engine exhaust brake
- extra heavy duty alternator - 12-volt, 200 amp Denso SC5
- painted plastic grille
- lights - roof marker/clearance - amber lenses, 5 lights
- tow hooks, front - frame-mounted, painted black
- four body builder switches - mounted in center instrument panel
- black vinyl floor covering
- intelligent oil life monitor
- steering column - tilt / telescoping
- steering wheel - black PVC with integral cruise control switches, includes audio controls
- body builder wiring - at back of cab, combined
- air dryer, Bendix AD/IS with heater
- air brakes - straight truck with traction control
- SecuriLock passive anti-theft system
- exterior appearance group
- bumper, front - full width, chrome plated steel
- chromed fender badge
- chrome grille surround
- power equipment group
- remote keyless entry with 2 key fobs
Detailed Specifications
- 1-touch down
- 1-touch up
- Air conditioning
- Driver door bin
- Front beverage holders
- Illuminated entry
- Passenger door bin
- Passenger vanity mirror
- Power windows
- Remote keyless entry
- Speed control
- Telescoping steering wheel
- Tilt steering wheel
- Dual rear wheels
- Front anti-roll bar
- Front tires: 279/82R22.5G
- Power steering
- Rear tires: 279/82R22.5G
- Wheel size: 22.5"
- AM/FM radio
- Speakers: 4
- Steering wheel mounted audio controls
- Wireless phone connectivity: Bluetooth
- Basic warranty: 24 months/ unlimited distance
- Corrosion perforation warranty: 36 months/ unlimited distance
- Diesel engine warranty: 60 months/250,000miles
- Powertrain warranty: 24 months/ unlimited distance
- Roadside assistance coverage: 24 months/ unlimited distance
- Driver seat mounted armrest
- Max seating capacity: 2
- Passenger seat mounted armrest
- Seat Upholstery: vinyl
- Block heater
- Compressor: intercooled turbo
- Cylinder configuration: V-8
- Drive type: rear-wheel
- Engine liters: 6.7L
- Engine location: front
- Horsepower: 300hp @ 2,500RPM
- Hybrid traction battery type: none
- Manual-shift auto
- Mode select transmission
- Number of valves: 32
- Recommended fuel: Diesel
- Torque: 725 lb.-ft. @ 1,500RPM
- Transmission: 10 speed automatic
- Bumpers: chrome
- Heated door mirrors
- Power door mirrors
- Compression ratio: 16.20 to 1
- Curb weight: 4,723kg (10,413lbs)
- Engine bore x stroke: 99.1mm x 108.0mm (3.90" x 4.25")
- Engine displacement: 6.7 L
- Engine horsepower: 300hp @ 2,500RPM
- Engine torque: 725 lb.-ft. @ 1,500RPM
- Exterior body width: 2,456mm (96.7")
- Exterior height: 2,418mm (95.2")
- Exterior length: 6,248mm (246.0")
- Front headroom: 1,034mm (40.7")
- Front hiproom: 1,717mm (67.6")
- Front legroom: 1,052mm (41.4")
- Front shoulder room: 1,727mm (68.0")
- Wheelbase: 4,013mm (158.0")
- Appearance: analog
- Delay-off headlights
- Exterior parking camera rear
- Front reading lights
- Fully automatic headlights
- Speed sensitive wipers
- Tachometer
- Trip computer
- Variably intermittent wipers
- Voltmeter
- ABS brakes
- Electronic stability
- Ignition disable
- Panic alarm
- Tracker system
- Traction control
Dealer Notes
*Internet price does not include tax, tags, destination, $799 dealer processing fee (not required by law), or any dealer installed accessories. Not all Ford Incentives are compatible with Special Financing APR through Ford Motor Credit. Electric Vehicle prices include the applicable Federal tax credit. Price may require financing through Ford Motor Credit at their standard rates, other dealer arranged financing, and trade assistance. Please stop in to confirm eligibility and compatibility of Ford Incentive Programs as not all rebates are compatible with one another and not all buyers will qualify for all rebates. See dealer for details.
